SoXtGLWidget Class Reference

The SoXtGLWidget class manages OpenGL contexts. More...

#include <Inventor/Xt/SoXtGLWidget.h>

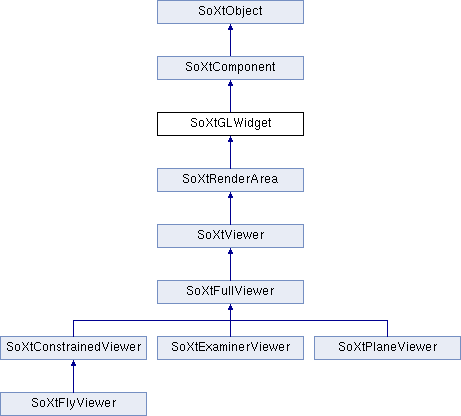

Inheritance diagram for SoXtGLWidget:

Public Member Functions
void	setBorder (const SbBool enable)
SbBool	isBorder (void) const
virtual void	setDoubleBuffer (const SbBool enable)
SbBool	isDoubleBuffer (void) const
void	setDrawToFrontBufferEnable (const SbBool enable)
SbBool	isDrawToFrontBufferEnable (void) const
void	setQuadBufferStereo (const SbBool enable)
SbBool	isQuadBufferStereo (void) const
void	setAccumulationBuffer (const SbBool enable)
SbBool	getAccumulationBuffer (void) const
void	setStencilBuffer (const SbBool enable)
SbBool	getStencilBuffer (void) const
void	setAlphaChannel (const SbBool enable)
SbBool	getAlphaChannel (void) const
void	setOverlayRender (const SbBool onoff)
SbBool	isOverlayRender (void) const
void	setSampleBuffers (const int numsamples)
int	getSampleBuffers (void) const
void	setStealFocus (SbBool enable)
SbBool	isStealFocus (void) const
Widget	getGLWidget (void) const
Widget	getNormalWidget (void) const
Widget	getOverlayWidget (void) const
SbBool	hasOverlayGLArea (void) const
SbBool	hasNormalGLArea (void) const
unsigned long	getOverlayTransparentPixel (void)
void	getPointSizeLimits (SbVec2f &range, float &granularity)
void	getLineWidthLimits (SbVec2f &range, float &granularity)
GLXContext	getNormalContext (void)
GLXContext	getOverlayContext (void)
Window	getNormalWindow (void)
Window	getOverlayWindow (void)
int	getOverlayColorMapSize (void)
int	getColorMapSize (void)
virtual void	setNormalVisual (XVisualInfo *visual)
XVisualInfo *	getNormalVisual (void)
virtual void	setOverlayVisual (XVisualInfo *visual)
XVisualInfo *	getOverlayVisual (void)
Public Member Functions inherited from SoXtComponent
virtual	~SoXtComponent ()
virtual void	show (void)
virtual void	hide (void)
virtual void	setComponentCursor (const SoXtCursor &cursor)
SbBool	isFullScreen (void) const
SbBool	setFullScreen (const SbBool onoff)
SbBool	isVisible (void)
SbBool	isTopLevelShell (void) const
Widget	getWidget (void) const
Widget	getBaseWidget (void) const
Widget	getShellWidget (void) const
Widget	getParentWidget (void) const
void	setSize (const SbVec2s size)
SbVec2s	getSize (void) const
void	setTitle (const char *const title)
const char *	getTitle (void) const
void	setIconTitle (const char *const title)
const char *	getIconTitle (void) const
const char *	getWidgetName (void) const
const char *	getClassName (void) const
void	setWindowCloseCallback (SoXtComponentCB *const func, void *const user=NULL)
Display *	getDisplay (void)
void	fitSize (const SbVec2s size)
void	addWindowCloseCallback (SoXtComponentCB *callback, void *closure=NULL)
void	removeWindowCloseCallback (SoXtComponentCB *callback, void *closure=NULL)
Public Member Functions inherited from SoXtObject
virtual SoType	getTypeId (void) const =0
SbBool	isOfType (SoType type) const

Protected Member Functions
	SoXtGLWidget (Widget const parent=NULL, const char *const name=NULL, const SbBool embed=TRUE, const int glmodes=SO_GL_RGB, const SbBool build=TRUE)
	~SoXtGLWidget ()
virtual void	processEvent (XAnyEvent *event)
Widget	buildWidget (Widget parent)
virtual void	redraw (void)=0
virtual void	redrawOverlay (void)
virtual void	initGraphic (void)
virtual void	initOverlayGraphic (void)
virtual void	sizeChanged (const SbVec2s &size)
virtual void	widgetChanged (Widget w)
void	setGLSize (const SbVec2s size)
SbVec2s	getGLSize (void) const
float	getGLAspectRatio (void) const
void	setGlxSize (const SbVec2s size)
SbVec2s	getGlxSize (void) const
float	getGlxAspectRatio (void) const
void	setStereoBuffer (SbBool flag)
SbBool	isStereoBuffer (void) const
SbBool	isRGBMode (void)
void	glLockNormal (void)
void	glUnlockNormal (void)
void	glLockOverlay (void)
void	glUnlockOverlay (void)
void	glSwapBuffers (void)
void	glFlushBuffer (void)
virtual SbBool	glScheduleRedraw (void)
int	getDisplayListShareGroup (GLXContext context)
Widget	getGlxMgrWidget (void)
Protected Member Functions inherited from SoXtComponent
	SoXtComponent (Widget const parent=NULL, const char *const name=NULL, const SbBool embed=TRUE)
virtual void	afterRealizeHook (void)
void	setClassName (const char *const name)
void	setBaseWidget (Widget widget)
void	registerWidget (Widget widget)
void	unregisterWidget (Widget widget)
virtual const char *	getDefaultWidgetName (void) const
virtual const char *	getDefaultTitle (void) const
virtual const char *	getDefaultIconTitle (void) const
void	addVisibilityChangeCallback (SoXtComponentVisibilityCB *const func, void *const user=NULL)
void	removeVisibilityChangeCallback (SoXtComponentVisibilityCB *const func, void *const user=NULL)
void	invokeVisibilityChangeCallbacks (const SbBool enable) const
void	invokeWindowCloseCallbacks (void) const
virtual void	windowCloseAction (void)

Static Protected Member Functions
static void	eventHandler (Widget, SoXtGLWidget *, XAnyEvent *, Boolean *)

Protected Attributes
SbBool	waitForExpose
SbBool	drawToFrontBuffer
Protected Attributes inherited from SoXtComponent
SbBool	firstRealize

Additional Inherited Members
Static Public Member Functions inherited from SoXtComponent
static void	setWidgetCursor (Widget w, const SoXtCursor &cursor)
static SoXtComponent *	getComponent (Widget widget)
static void	initClasses (void)
Static Public Member Functions inherited from SoXtObject
static void	initClass (void)
static SoType	getClassTypeId (void)
static void	init (void)

Detailed Description

The SoXtGLWidget class manages OpenGL contexts.

This is the basic, abstract component class which sets up an OpenGL canvas for its subclasses.

Application programmers will normally not use this class directly, but rather through the interface of either its direct descendent; SoXtRenderArea, or through one of the "rapid application development"-style viewer subclasses.

Constructor & Destructor Documentation

SoXtGLWidget()

SoXtGLWidget::SoXtGLWidget ( Widget const  parent = NULL, const char *const  name = NULL, const SbBool  embed = TRUE, const int  glmodes = SO_GL_RGB, const SbBool  build = TRUE  )

protected

The constructor is protected, as this is an abstract class to only be used by it's subclasses.

~SoXtGLWidget()

SoXtGLWidget::~SoXtGLWidget ( )

protected

Clean up all use of internal resources.

The destructor is protected, as this is an abstract class to only be used by it's subclasses.

Member Function Documentation

setBorder()

void SoXtGLWidget::setBorder

(

const SbBool

enable

)

Specify whether or not there should be a border framing the OpenGL canvas. The border will be 2 pixels wide.

The default is to display the OpenGL canvas with no border.

See also

isBorder()

isBorder()

SbBool SoXtGLWidget::isBorder

(

void

)

const

Returns whether or not there's a border framing the OpenGL canvas.

See also

setBorder()

setDoubleBuffer()

void SoXtGLWidget::setDoubleBuffer ( const SbBool  enable )

virtual

Switch between single and double buffer mode for the OpenGL canvas. The default is to use a single buffer canvas.

See also

isDoubleBuffer()

This method sets whether double buffering is to be used or not.

Reimplemented in SoXtViewer.

isDoubleBuffer()

SbBool SoXtGLWidget::isDoubleBuffer

(

void

)

const

Returns the status of the buffer mode.

See also

setDoubleBuffer()

This method returns whether double buffering is used or not.

setDrawToFrontBufferEnable()

void SoXtGLWidget::setDrawToFrontBufferEnable

(

const SbBool

enable

)

If this is set to TRUE, rendering will happen in the front buffer even if the current rendering mode is double buffered.

This method sets whether rendering will be done to the front buffer or not.

isDrawToFrontBufferEnable()

SbBool SoXtGLWidget::isDrawToFrontBufferEnable

(

void

)

const

See also

setDrawToFrontBufferEnable()

This method returns whether rendering will be done to the front buffer or not.

setQuadBufferStereo()

void SoXtGLWidget::setQuadBufferStereo

(

const SbBool

enable

)

Enables or disables OpenGL quad buffer stereo.

isQuadBufferStereo()

SbBool SoXtGLWidget::isQuadBufferStereo

(

void

)

const

Returns TRUE if quad buffer stereo is enabled for this widget.

setAccumulationBuffer()

void SoXtGLWidget::setAccumulationBuffer

(

const SbBool

enable

)

Enables/disables the OpenGL accumulation buffer.

For general information about accumulation buffers, confer with your OpenGL reference documentation.

By default, the accumulation buffer will be attempted disabled. Whether or not it will actually be disabled depends on what OpenGL contexts are available on the system. It is perfectly possible that the only usable contexts with regard to the other settings (like double buffering and RGBA mode versus color index mode) causes the context selection to choose an OpenGL format that contains an accumulation buffer, even though it was not requested.

Vice versa, one is not guaranteed to get accumulation buffers even when requested through this function, either because they are not available, or because they are only available in combination with other OpenGL context settings that are not wanted (like single buffers, non-accellerated rendering, etc).

If you try to enable accumulation buffers by using this function, you should therefore in succession use the SoXtGLWidget::getAccumulationBuffer() to query whether or not an accumulation buffer could actually be set up.

See also

SoXtRenderArea::setAntiAliasing()

Enables or disables quad buffer stereo.

Enables/disables the OpenGL accumulation buffer.

getAccumulationBuffer()

SbBool SoXtGLWidget::getAccumulationBuffer

(

void

)

const

Returns whether the OpenGL accumulation buffer is enabled.

The returned flag will indicate whether or not accumulation buffers are actually present, and not just parrot the input value to SoXtGLWidget::setAccumulationBuffer(). See documentation of that function for more information.

Returns whether the OpenGL accumulation buffer is enabled.

setStencilBuffer()

void SoXtGLWidget::setStencilBuffer

(

const SbBool

enable

)

Enables/disables the OpenGL stencil buffer.

For general information about stencil buffers, confer with your OpenGL reference documentation.

By default, the stencil buffer will be attempted disabled, but the same notes apply for stencil buffers as for accumulation buffers. For an explanation on the issue of stencil and accumulation buffer availability, see the function documentation of SoXtGLWidget::setAccumulationBuffer().

Enables/disables the OpenGL stencil buffer.

getStencilBuffer()

SbBool SoXtGLWidget::getStencilBuffer

(

void

)

const

Returns whether the OpenGL stencil buffer is enabled.

The returned flag will indicate whether or not stencil buffers are actually present, in the same manner as for SoXtGLWidget::getAccumulationBuffer(). See documentation of SoXtGLWidget::setStencilBuffer().

Returns whether the OpenGL stencil buffer is enabled.

setAlphaChannel()

void SoXtGLWidget::setAlphaChannel

(

const SbBool

enable

)

Enables/disables the alpha channel for the OpenGL context.

Enables/disables an alpha channel for the rendering context.

getAlphaChannel()

SbBool SoXtGLWidget::getAlphaChannel

(

void

)

const

Returns whether the alpha channel is enabled for the OpenGL context.

Returns whether the an alpha channel is enabled.

setOverlayRender()

void SoXtGLWidget::setOverlayRender

(

const SbBool

onoff

)

Turn on or off the use of overlay planes.

See also

isOverlayRender()

isOverlayRender()

SbBool SoXtGLWidget::isOverlayRender

(

void

)

const

Returns a flag indicating whether or not overplay planes are currently used.

See also

setOverlayRender()

setSampleBuffers()

void SoXtGLWidget::setSampleBuffers

(

const int

numsamples

)

Set the number of samples use when enabling multisample buffer contexts. Multisampling will be enabled when numsamples > 1.

getSampleBuffers()

int SoXtGLWidget::getSampleBuffers

(

void

)

const

Returns the number of samples used for multisampling. Returns 1 if multisampling is disabled.

setStealFocus()

void SoXtGLWidget::setStealFocus

(

SbBool

enable

)

Sets whether the GL widget should steal keyboard focus when the mouse is over the GL view.

Default is TRUE.

See also

isStealFocus

Since

SoXt 1.3.0

isStealFocus()

SbBool SoXtGLWidget::isStealFocus

(

void

)

const

Returns whether focus stealing policy is on (TRUE) or off (FALSE).

Default is TRUE.

See also

setStealFocus

Since

SoXt 1.3.0

getGLWidget()

Widget SoXtGLWidget::getGLWidget

(

void

)

const

Returns a pointer to the toolkit-native GL widget.

This method returns the actual GL widget.

getNormalWidget()

Widget SoXtGLWidget::getNormalWidget

(

void

)

const

This method returns the Widget associated with the normal GL context.

getOverlayWidget()

Widget SoXtGLWidget::getOverlayWidget

(

void

)

const

Returns widget associated with overlay planes, or NULL if no overlay planes are available.

This method returns the Widget associated with the overlay GL context.

hasOverlayGLArea()

SbBool SoXtGLWidget::hasOverlayGLArea

(

void

)

const

Will return TRUE if an overlay GL drawing area exists.

Should return TRUE if an overlay GL drawing area exists.

hasNormalGLArea()

SbBool SoXtGLWidget::hasNormalGLArea

(

void

)

const

Will return TRUE if a normal GL drawing area exists.

Should return TRUE if a normal GL drawing area exists.

getOverlayTransparentPixel()

unsigned long SoXtGLWidget::getOverlayTransparentPixel

(

void

)

Returns the overlay transparent pixel.

This method returns the transparent pixel for the overlay planes.

getPointSizeLimits()

void SoXtGLWidget::getPointSizeLimits	(	SbVec2f &	range,
		float &	granularity
	)

This function is provided as a convenience for the application programmer to help with acquiring the OpenGL implementation limits for rendering points.

For robust application code, one needs to consider the range limits when setting the SoDrawStyle::pointSize field.

getLineWidthLimits()

void SoXtGLWidget::getLineWidthLimits	(	SbVec2f &	range,
		float &	granularity
	)

This function is provided as a convenience for the application programmer to help with acquiring the OpenGL implementation limits for rendering lines.

For robust application code, one needs to consider the range limits when setting the SoDrawStyle::lineWidth field.

processEvent()

void SoXtGLWidget::processEvent ( XAnyEvent *  event )

protectedvirtual

Any events from the native window system that goes to the OpenGL canvas gets piped through this method.

It is overridden in the subclasses to catch user interaction with the render canvas in the viewers, aswell as forwarding relevant events to the scenegraph.

Any events from the native window system that goes to the OpenGL canvas gets piped through this method.

It is overloaded in the subclasses to catch user interaction with the render canvas in the viewers, aswell as forwarding relevant events to the scenegraph.

Reimplemented in SoXtRenderArea.

buildWidget()

Widget SoXtGLWidget::buildWidget ( Widget  parent )

protected

This method builds the component contents in the given parent widget. For subclasses adding new user interface items, this method is typically overridden in the following manner:

Widget MyOwnViewer::buildWidget(Widget parent)
{
   Widget superw = <superclass>::buildWidget(parent);
   // [then move superw within MyOwnViewer framework and add own
   // user interface components]
}

redraw()

void SoXtGLWidget::redraw ( void  )

protectedpure virtual

This method is invoked when the GL buffer needs to be redrawn.

Implemented in SoXtRenderArea.

redrawOverlay()

void SoXtGLWidget::redrawOverlay ( void  )

protectedvirtual

Renders the overlay scene graph. Default method is empty. Subclasses should override this method.

This method is invoked when the overlay graphics should be redrawn.

Reimplemented in SoXtRenderArea.

initGraphic()

void SoXtGLWidget::initGraphic ( void  )

protectedvirtual

Will be called when GL widget should initialize graphic, after the widget has been created. Default method enabled GL_DEPTH_TEST.

This method initializes the graphics.

Reimplemented in SoXtRenderArea.

initOverlayGraphic()

void SoXtGLWidget::initOverlayGraphic ( void  )

protectedvirtual

Will be called after the overlay widget has been created, and subclasses should override this to initialize overlay stuff.

Default method does nothing.

This method initializes the overlay graphics.

Reimplemented in SoXtRenderArea.

sizeChanged()

void SoXtGLWidget::sizeChanged ( const SbVec2s &  size )

protectedvirtual

Called internally from within the SoXt library when the widget embedded in a component changes it size, which is usually triggered by end-user interaction.

This method is then invoked to notify the component that the size has changed. It is called from the top and all the way down to the bottom, the size being adjusted to take into account extra decorations having been added at each level in the component class hierarchy.

Reimplemented from SoXtComponent.

Reimplemented in SoXtViewer, SoXtRenderArea, and SoXtFullViewer.

widgetChanged()

void SoXtGLWidget::widgetChanged ( Widget  widget )

protectedvirtual

This is the method which gets called whenever we change which OpenGL widget is used.

Should be overridden in subclasses which directly or indirectly store the return value from the SoXtGLWidget::getGLWidget() method.

See also

sizeChanged()

This method is invoked when a widget in the component is changed.

Reimplemented in SoXtRenderArea.

setGLSize()

void SoXtGLWidget::setGLSize ( const SbVec2s  size )

protected

Sets the size of the GL canvas.

This methid sets the size of the GL widget.

getGLSize()

SbVec2s SoXtGLWidget::getGLSize ( void  ) const

protected

Return the dimensions of the OpenGL canvas.

This method returns the size of the GL area.

getGLAspectRatio()

float SoXtGLWidget::getGLAspectRatio ( void  ) const

protected

Return the aspect ratio of the OpenGL canvas.

This method returns the aspect ratio of the GL area.

setGlxSize()

void SoXtGLWidget::setGlxSize ( const SbVec2s  size )

inlineprotected

This function has been renamed to the more appropriate setGLSize.

See also

setGLSize

This method sets the Glx size.

See also

setGLSize

getGlxSize()

const SbVec2s SoXtGLWidget::getGlxSize ( void  ) const

inlineprotected

This function has been renamed to the more appropriate getGLSize.

See also

getGLSize

This method returns the size of the Glx area.

See also

getGLSize

getGlxAspectRatio()

float SoXtGLWidget::getGlxAspectRatio ( void  ) const

inlineprotected

This function has been renamed to the more appropriate getGLAspectRatio.

See also

getGLAspectRatio

This is the old name for getGLAspectRatio.

See also

getGLAspectRatio

setStereoBuffer()

void SoXtGLWidget::setStereoBuffer ( SbBool  flag )

protected

Sets whether OpenGL stereo buffers (quad buffer stereo) should be used.

isStereoBuffer()

SbBool SoXtGLWidget::isStereoBuffer ( void  ) const

protected

Returns whether OpenGL stereo buffers are being used.

isRGBMode()

SbBool SoXtGLWidget::isRGBMode ( void  )

protected

Returns TRUE if the normal GL context is in RGBA mode. Return FALSE if color index mode is used.

This method returns whether the GL context is in RGB mode or not.

glLockNormal()

void SoXtGLWidget::glLockNormal ( void  )

protected

This method calls make-current on the correct context and ups the lock level.

This method locks the GL context.

On systems that use GL context locking and unlocking, this method will lock the GL context. On other systems, only makeCurrent will be run.

This method is an SoXt extension.

glUnlockNormal()

void SoXtGLWidget::glUnlockNormal ( void  )

protected

This method drops the lock level.

This method unlocks the GL context.

glLockOverlay()

void SoXtGLWidget::glLockOverlay ( void  )

protected

This method calls make-current on the correct context and ups the lock level.

This method locks the GL context.

On systems that use GL context locking and unlocking, this method will lock the GL context. On other systems, only makeCurrent will be run.

This method is an SoXt extension.

glUnlockOverlay()

void SoXtGLWidget::glUnlockOverlay ( void  )

protected

This method drops the lock level.

This method unlocks the GL context.

glSwapBuffers()

void SoXtGLWidget::glSwapBuffers ( void  )

protected

Swap back buffer to front and vice versa.

This method swaps the GL buffers.

glFlushBuffer()

void SoXtGLWidget::glFlushBuffer ( void  )

protected

Flush the current GL buffer. Simply calls glFlush().

This method flushes the GL context.

glScheduleRedraw()

SbBool SoXtGLWidget::glScheduleRedraw ( void  )

protectedvirtual

Will be called whenever scene graph needs to be redrawn. If this method return FALSE, redraw() will be called immediately.

Default method simply returns FALSE. Override this method to schedule a redraw and return TRUE if you're trying to do The Right Thing.

Will be called whenever scene graph needs to be redrawn(). If this method return FALSE, redraw() will be called immediately.

Default method simply returns FALSE. Overload this method to schedule a redraw and return TRUE if you're trying to do The Right Thing.

Reimplemented in SoXtRenderArea.

getNormalContext()

GLXContext SoXtGLWidget::getNormalContext

(

void

)

Returns the GL context for normal rendering.

See also

getOverlayContext

getOverlayContext()

GLXContext SoXtGLWidget::getOverlayContext

(

void

)

Returns the GL context for overlay rendering.

See also

getNormalContext

getNormalWindow()

Window SoXtGLWidget::getNormalWindow

(

void

)

This method returns the Window associated with the normal GL context.

getOverlayWindow()

Window SoXtGLWidget::getOverlayWindow

(

void

)

This method returns the Window associated with the overlay GL context.

getOverlayColorMapSize()

int SoXtGLWidget::getOverlayColorMapSize

(

void

)

This method returns the size of the colormap for the overlay planes.

getColorMapSize()

int SoXtGLWidget::getColorMapSize

(

void

)

This methos returns the size of the colormap for the normal planes.

setNormalVisual()

void SoXtGLWidget::setNormalVisual ( XVisualInfo *  visual )

virtual

This method sets the visual for the normal GL context.

getNormalVisual()

XVisualInfo * SoXtGLWidget::getNormalVisual

(

void

)

This method returns the visual for the normal GL context.

setOverlayVisual()

void SoXtGLWidget::setOverlayVisual ( XVisualInfo *  visual )

virtual

This method sets the visual for the overlay GL context.

getOverlayVisual()

XVisualInfo * SoXtGLWidget::getOverlayVisual

(

void

)

This method returns the visual for the overlay GL context.

eventHandler()

void SoXtGLWidget::eventHandler ( Widget  widget, SoXtGLWidget *  closure, XAnyEvent *  event, Boolean *  dispatch  )

staticprotected

This method is a callback that dispatches events to processEvent().

See also

processEvent

getDisplayListShareGroup()

int SoXtGLWidget::getDisplayListShareGroup ( GLXContext  context )

protected

This method returns the share group for the display lists for the GL context.

getGlxMgrWidget()

Widget SoXtGLWidget::getGlxMgrWidget ( void  )

protected

This method returns the widget that is managing the GL widget.

Member Data Documentation

waitForExpose

SbBool SoXtGLWidget::waitForExpose

protected

If this is TRUE, rendering should not be done yet. Upon the first expose event of a newly created OpenGL widget, this variable will be set to FALSE.

drawToFrontBuffer

SbBool SoXtGLWidget::drawToFrontBuffer

protected

If this is TRUE, rendering will happen in the front buffer even if the current rendering mode is double buffered.

---

The documentation for this class was generated from the following files:

• SoXtGLWidget.h
• SoXtGLWidgetCommon.cpp
• SoXtGLWidget.cpp
