The SoXtConstrainedViewer class is the superclass for viewers with constrains on the viewpoint. More...

#include <Inventor/Xt/viewers/SoXtConstrainedViewer.h>

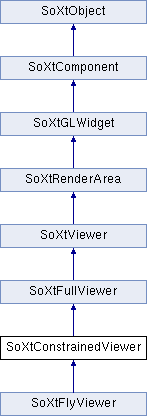

Inheritance diagram for SoXtConstrainedViewer:

Public Member Functions
void	setUpDirection (const SbVec3f &dir)

const SbVec3f &	getUpDirection (void) const

virtual void	setCamera (SoCamera *newcam)

virtual void	saveHomePosition (void)

virtual void	resetToHomePosition (void)

Public Member Functions inherited from SoXtFullViewer
void	setDecoration (const SbBool on)

SbBool	isDecoration (void) const

void	setPopupMenuEnabled (const SbBool on)

SbBool	isPopupMenuEnabled (void) const

Widget	getAppPushButtonParent (void) const

void	addAppPushButton (Widget newButton)

void	insertAppPushButton (Widget newButton, int index)

void	removeAppPushButton (Widget oldButton)

int	findAppPushButton (Widget oldButton) const

int	lengthAppPushButton (void) const

Widget	getRenderAreaWidget (void) const

virtual void	setViewing (SbBool on)

virtual void	setComponentCursor (const SoXtCursor &cursor)

Public Member Functions inherited from SoXtViewer
SoCamera *	getCamera (void) const

virtual void	setCameraType (SoType type)

SoType	getCameraType (void) const

virtual void	toggleCameraType (void)

virtual void	viewAll (void)

virtual void	setHeadlight (SbBool enable)

SbBool	isHeadlight (void) const

SoDirectionalLight *	getHeadlight (void) const

virtual void	setDrawStyle (SoXtViewer::DrawType type, SoXtViewer::DrawStyle style)

SoXtViewer::DrawStyle	getDrawStyle (const SoXtViewer::DrawType type) const

virtual void	setBufferingType (SoXtViewer::BufferType type)

SoXtViewer::BufferType	getBufferingType (void) const

SbBool	isViewing (void) const

virtual void	setCursorEnabled (SbBool enable)

SbBool	isCursorEnabled (void) const

void	setAutoClipping (SbBool enable)

SbBool	isAutoClipping (void) const

void	setAutoClippingStrategy (const AutoClippingStrategy strategy, const float value=0.6f, SoXtAutoClippingCB cb=NULL, void cbuserdata=NULL)

virtual void	setStereoViewing (SbBool enable)

SbBool	isStereoViewing (void) const

virtual void	setStereoOffset (const float dist)

float	getStereoOffset (void) const

SbBool	setStereoType (SoXtViewer::StereoType s)

SoXtViewer::StereoType	getStereoType (void) const

void	setAnaglyphStereoColorMasks (const SbBool left[3], const SbBool right[3])

void	getAnaglyphStereoColorMasks (SbBool left[3], SbBool right[3])

void	setDetailSeek (const SbBool enable)

SbBool	isDetailSeek (void) const

void	setSeekTime (const float seconds)

float	getSeekTime (void) const

void	addStartCallback (SoXtViewerCB func, void data=NULL)

void	addFinishCallback (SoXtViewerCB func, void data=NULL)

void	removeStartCallback (SoXtViewerCB func, void data=NULL)

void	removeFinishCallback (SoXtViewerCB func, void data=NULL)

void	setWireframeOverlayColor (const SbColor &color)

const SbColor &	getWireframeOverlayColor (void) const

virtual void	setDoubleBuffer (const SbBool enable)

virtual void	setSceneGraph (SoNode *root)

virtual SoNode *	getSceneGraph (void)

Public Member Functions inherited from SoXtRenderArea
	SoXtRenderArea (Widget parent=NULL, const char *name=NULL, SbBool embed=TRUE, SbBool mouseInput=TRUE, SbBool keyboardInput=TRUE)

	~SoXtRenderArea ()

void	setOverlaySceneGraph (SoNode *scene)

SoNode *	getOverlaySceneGraph (void)

void	setBackgroundColor (const SbColor &color)

const SbColor &	getBackgroundColor (void) const

void	setBackgroundIndex (int idx)

int	getBackgroundIndex (void) const

void	setOverlayBackgroundIndex (int idx)

int	getOverlayBackgroundIndex (void) const

void	setColorMap (int start, int num, const SbColor *colors)

void	setOverlayColorMap (int start, int num, const SbColor *colors)

void	setViewportRegion (const SbViewportRegion &newRegion)

const SbViewportRegion &	getViewportRegion (void) const

void	setTransparencyType (SoGLRenderAction::TransparencyType type)

SoGLRenderAction::TransparencyType	getTransparencyType (void) const

void	setAntialiasing (SbBool smoothing, int numPasses)

void	getAntialiasing (SbBool &smoothing, int &numPasses) const

void	setClearBeforeRender (SbBool enable, SbBool zbEnable=TRUE)

SbBool	isClearBeforeRender (void) const

SbBool	isClearZBufferBeforeRender (void) const

void	setClearBeforeOverlayRender (SbBool enable)

SbBool	isClearBeforeOverlayRender (void) const

void	setAutoRedraw (SbBool enable)

SbBool	isAutoRedraw (void) const

void	setRedrawPriority (uint32_t priority)

uint32_t	getRedrawPriority (void) const

void	render (void)

void	renderOverlay (void)

void	scheduleRedraw (void)

void	scheduleOverlayRedraw (void)

void	redrawOnSelectionChange (SoSelection *selection)

void	redrawOverlayOnSelectionChange (SoSelection *selection)

void	setEventCallback (SoXtRenderAreaEventCB func, void user=NULL)

void	setSceneManager (SoSceneManager *manager)

SoSceneManager *	getSceneManager (void) const

void	setOverlaySceneManager (SoSceneManager *manager)

SoSceneManager *	getOverlaySceneManager (void) const

void	setGLRenderAction (SoGLRenderAction *action)

SoGLRenderAction *	getGLRenderAction (void) const

void	setOverlayGLRenderAction (SoGLRenderAction *action)

SoGLRenderAction *	getOverlayGLRenderAction (void) const

SbBool	sendSoEvent (const SoEvent *event)

void	registerDevice (SoXtDevice *device)

void	unregisterDevice (SoXtDevice *device)

Public Member Functions inherited from SoXtGLWidget
void	setBorder (const SbBool enable)

SbBool	isBorder (void) const

SbBool	isDoubleBuffer (void) const

void	setDrawToFrontBufferEnable (const SbBool enable)

SbBool	isDrawToFrontBufferEnable (void) const

void	setQuadBufferStereo (const SbBool enable)

SbBool	isQuadBufferStereo (void) const

void	setAccumulationBuffer (const SbBool enable)

SbBool	getAccumulationBuffer (void) const

void	setStencilBuffer (const SbBool enable)

SbBool	getStencilBuffer (void) const

void	setAlphaChannel (const SbBool enable)

SbBool	getAlphaChannel (void) const

void	setOverlayRender (const SbBool onoff)

SbBool	isOverlayRender (void) const

void	setSampleBuffers (const int numsamples)

int	getSampleBuffers (void) const

void	setStealFocus (SbBool enable)

SbBool	isStealFocus (void) const

Widget	getGLWidget (void) const

Widget	getNormalWidget (void) const

Widget	getOverlayWidget (void) const

SbBool	hasOverlayGLArea (void) const

SbBool	hasNormalGLArea (void) const

unsigned long	getOverlayTransparentPixel (void)

void	getPointSizeLimits (SbVec2f &range, float &granularity)

void	getLineWidthLimits (SbVec2f &range, float &granularity)

GLXContext	getNormalContext (void)

GLXContext	getOverlayContext (void)

Window	getNormalWindow (void)

Window	getOverlayWindow (void)

int	getOverlayColorMapSize (void)

int	getColorMapSize (void)

virtual void	setNormalVisual (XVisualInfo *visual)

XVisualInfo *	getNormalVisual (void)

virtual void	setOverlayVisual (XVisualInfo *visual)

XVisualInfo *	getOverlayVisual (void)

Public Member Functions inherited from SoXtComponent
virtual	~SoXtComponent ()

virtual void	show (void)

virtual void	hide (void)

SbBool	isFullScreen (void) const

SbBool	setFullScreen (const SbBool onoff)

SbBool	isVisible (void)

SbBool	isTopLevelShell (void) const

Widget	getWidget (void) const

Widget	getBaseWidget (void) const

Widget	getShellWidget (void) const

Widget	getParentWidget (void) const

void	setSize (const SbVec2s size)

SbVec2s	getSize (void) const

void	setTitle (const char *const title)

const char *	getTitle (void) const

void	setIconTitle (const char *const title)

const char *	getIconTitle (void) const

const char *	getWidgetName (void) const

const char *	getClassName (void) const

void	setWindowCloseCallback (SoXtComponentCB const func, void const user=NULL)

Display *	getDisplay (void)

void	fitSize (const SbVec2s size)

void	addWindowCloseCallback (SoXtComponentCB callback, void closure=NULL)

void	removeWindowCloseCallback (SoXtComponentCB callback, void closure=NULL)

Public Member Functions inherited from SoXtObject
virtual SoType	getTypeId (void) const =0

SbBool	isOfType (SoType type) const

Protected Member Functions
	SoXtConstrainedViewer (Widget parent, const char *const name, SbBool embed, SoXtFullViewer::BuildFlag flag, SoXtViewer::Type type, SbBool build)

	~SoXtConstrainedViewer ()

virtual void	tiltCamera (float delta)

virtual void	bottomWheelMotion (float value)

virtual void	leftWheelMotion (float value)

virtual void	changeCameraValues (SoCamera *camera)

void	findUpDirection (SbVec2s mouselocation)

void	checkForCameraUpConstrain (void)

Protected Member Functions inherited from SoXtFullViewer
	SoXtFullViewer (Widget parent, const char *name, SbBool embed, BuildFlag flag, Type type, SbBool build)

	~SoXtFullViewer ()

virtual void	sizeChanged (const SbVec2s &size)

Widget	buildWidget (Widget parent)

virtual void	buildDecoration (Widget parent)

virtual Widget	buildLeftTrim (Widget parent)

virtual Widget	buildBottomTrim (Widget parent)

virtual Widget	buildRightTrim (Widget parent)

Widget	buildAppButtons (Widget parent)

Widget	buildViewerButtons (Widget parent)

virtual void	createViewerButtons (Widget parent, SbPList *buttonlist)

virtual void	buildPopupMenu (void)

virtual void	setPopupMenuString (const char *title)

virtual void	openPopupMenu (const SbVec2s position)

virtual void	leftWheelStart (void)

virtual void	leftWheelFinish (void)

float	getLeftWheelValue (void) const

void	setLeftWheelValue (const float value)

virtual void	bottomWheelStart (void)

virtual void	bottomWheelFinish (void)

float	getBottomWheelValue (void) const

void	setBottomWheelValue (const float value)

virtual void	rightWheelStart (void)

virtual void	rightWheelMotion (float)

virtual void	rightWheelFinish (void)

float	getRightWheelValue (void) const

void	setRightWheelValue (const float value)

void	setLeftWheelString (const char *const name)

Widget	getLeftWheelLabelWidget (void) const

void	setBottomWheelString (const char *const name)

Widget	getBottomWheelLabelWidget (void) const

void	setRightWheelString (const char *const name)

const char *	getRightWheelString () const

Widget	getRightWheelLabelWidget (void) const

virtual SbBool	processSoEvent (const SoEvent *const event)

Widget	buildFunctionsSubmenu (Widget popup)

Widget	buildDrawStyleSubmenu (Widget popup)

Protected Member Functions inherited from SoXtViewer
	SoXtViewer (Widget parent, const char *name, SbBool embed, Type type, SbBool build)

	~SoXtViewer ()

virtual void	setSeekMode (SbBool enable)

SbBool	isSeekMode (void) const

SbBool	seekToPoint (const SbVec2s screenpos)

void	seekToPoint (const SbVec3f &scenepos)

virtual void	computeSeekFinalOrientation (void)

virtual void	actualRedraw (void)

void	interactiveCountInc (void)

void	interactiveCountDec (void)

int	getInteractiveCount (void) const

void	setSeekDistance (const float distance)

float	getSeekDistance (void) const

void	setSeekValueAsPercentage (const SbBool on)

SbBool	isSeekValuePercentage (void) const

void	addSuperimposition (SoNode *scene)

void	removeSuperimposition (SoNode *scene)

void	setSuperimpositionEnabled (SoNode *scene, const SbBool enable)

SbBool	getSuperimpositionEnabled (SoNode *scene) const

Protected Member Functions inherited from SoXtRenderArea
	SoXtRenderArea (Widget parent, const char *name, SbBool embed, SbBool mouseInput, SbBool keyboardInput, SbBool build)

virtual void	redraw (void)

virtual void	redrawOverlay (void)

virtual void	actualOverlayRedraw (void)

virtual void	processEvent (XAnyEvent *event)

virtual void	initGraphic (void)

virtual void	initOverlayGraphic (void)

virtual void	widgetChanged (Widget widget)

virtual void	afterRealizeHook (void)

Widget	buildWidget (Widget parent)

virtual const char *	getDefaultWidgetName (void) const

virtual const char *	getDefaultTitle (void) const

virtual const char *	getDefaultIconTitle (void) const

virtual SbBool	glScheduleRedraw (void)

Protected Member Functions inherited from SoXtGLWidget
	SoXtGLWidget (Widget const parent=NULL, const char *const name=NULL, const SbBool embed=TRUE, const int glmodes=SO_GL_RGB, const SbBool build=TRUE)

	~SoXtGLWidget ()

Widget	buildWidget (Widget parent)

void	setGLSize (const SbVec2s size)

SbVec2s	getGLSize (void) const

float	getGLAspectRatio (void) const

void	setGlxSize (const SbVec2s size)

SbVec2s	getGlxSize (void) const

float	getGlxAspectRatio (void) const

void	setStereoBuffer (SbBool flag)

SbBool	isStereoBuffer (void) const

SbBool	isRGBMode (void)

void	glLockNormal (void)

void	glUnlockNormal (void)

void	glLockOverlay (void)

void	glUnlockOverlay (void)

void	glSwapBuffers (void)

void	glFlushBuffer (void)

int	getDisplayListShareGroup (GLXContext context)

Widget	getGlxMgrWidget (void)

Protected Member Functions inherited from SoXtComponent
	SoXtComponent (Widget const parent=NULL, const char *const name=NULL, const SbBool embed=TRUE)

void	setClassName (const char *const name)

void	setBaseWidget (Widget widget)

void	registerWidget (Widget widget)

void	unregisterWidget (Widget widget)

void	addVisibilityChangeCallback (SoXtComponentVisibilityCB const func, void const user=NULL)

void	removeVisibilityChangeCallback (SoXtComponentVisibilityCB const func, void const user=NULL)

void	invokeVisibilityChangeCallbacks (const SbBool enable) const

void	invokeWindowCloseCallbacks (void) const

virtual void	windowCloseAction (void)

Additional Inherited Members
Public Types inherited from SoXtFullViewer
enum	BuildFlag { BUILD_NONE = 0x00, BUILD_DECORATION = 0x01, BUILD_POPUP = 0x02, BUILD_ALL = (BUILD_DECORATION \| BUILD_POPUP) }

Public Types inherited from SoXtViewer
enum	Type { BROWSER, EDITOR }

enum	DrawStyle { VIEW_AS_IS, VIEW_HIDDEN_LINE, VIEW_NO_TEXTURE, VIEW_LOW_COMPLEXITY, VIEW_LINE, VIEW_POINT, VIEW_BBOX, VIEW_LOW_RES_LINE, VIEW_LOW_RES_POINT, VIEW_SAME_AS_STILL, VIEW_WIREFRAME_OVERLAY }

enum	DrawType { STILL = 0, INTERACTIVE }

enum	BufferType { BUFFER_SINGLE, BUFFER_DOUBLE, BUFFER_INTERACTIVE }

enum	AutoClippingStrategy { VARIABLE_NEAR_PLANE, CONSTANT_NEAR_PLANE }

enum	StereoType { STEREO_NONE, STEREO_ANAGLYPH, STEREO_QUADBUFFER, STEREO_INTERLEAVED_ROWS, STEREO_INTERLEAVED_COLUMNS }

Static Public Member Functions inherited from SoXtRenderArea
static uint32_t	getDefaultRedrawPriority (void)

Static Public Member Functions inherited from SoXtComponent
static void	setWidgetCursor (Widget w, const SoXtCursor &cursor)

static SoXtComponent *	getComponent (Widget widget)

static void	initClasses (void)

Static Public Member Functions inherited from SoXtObject
static void	initClass (void)

static SoType	getClassTypeId (void)

static void	init (void)

Static Protected Member Functions inherited from SoXtGLWidget
static void	eventHandler (Widget, SoXtGLWidget , XAnyEvent , Boolean *)

Protected Attributes inherited from SoXtFullViewer
Widget	leftWheel

Widget	rightWheel

Widget	bottomWheel

Widget	leftDecoration

Widget	rightDecoration

Widget	bottomDecoration

Widget	leftWheelLabel

char *	leftWheelStr

float	leftWheelVal

Widget	rightWheelLabel

char *	rightWheelStr

float	rightWheelVal

Widget	bottomWheelLabel

char *	bottomWheelStr

float	bottomWheelVal

SoXtPopupMenu *	prefmenu

char *	popupTitle

SbBool	popupEnabled

SbPList *	viewerButtonWidgets

Protected Attributes inherited from SoXtGLWidget
SbBool	waitForExpose

SbBool	drawToFrontBuffer

Protected Attributes inherited from SoXtComponent
SbBool	firstRealize

Detailed Description

The SoXtConstrainedViewer class is the superclass for viewers with constrains on the viewpoint.

This abstract viewer class adds new methods to keep the camera in an upright position according to some arbitrary up-direction. The up-direction can be decided by either the application programmer (by using SoXtConstrainedViewer::setUpDirection()) or the end-user, through interaction mechanisms defined by the subclasses.

Constructor & Destructor Documentation

◆ SoXtConstrainedViewer()

SoXtConstrainedViewer::SoXtConstrainedViewer	(	Widget	parent,
		const char *const	name,
		SbBool	embed,
		SoXtFullViewer::BuildFlag	flag,
		SoXtViewer::Type	type,
		SbBool	build
	)

protected

Constructor.

◆ ~SoXtConstrainedViewer()

SoXtConstrainedViewer::~SoXtConstrainedViewer ( )

protected

Virtual destructor.

Member Function Documentation

◆ setUpDirection()

void SoXtConstrainedViewer::setUpDirection ( const SbVec3f & dir )

Set up-direction vector for the camera viewpoint.

◆ getUpDirection()

const SbVec3f & SoXtConstrainedViewer::getUpDirection ( void ) const

Return up-direction vector for the camera viewpoint.

◆ setCamera()

void SoXtConstrainedViewer::setCamera ( SoCamera * cam )

virtual

Set the camera we want the viewer to manipulate when interacting with the viewer controls.

The camera passed in as an argument to this method must already be part of the viewer's scenegraph. You do not inject viewpoint cameras to the viewer with this method.

You should rather insert a camera into the scene graph first (if necessary, often one will be present already), then register it as the camera used by the viewer controls with this method.

If the application code doesn't explicitly set up a camera through this method, the viewer will automatically scan through the scenegraph to find a camera to use. If no camera is available in the scenegraph at all, it will set up it's own camera.

See also: getCamera()

Reimplemented from SoXtViewer.

Reimplemented in SoXtFlyViewer.

◆ saveHomePosition()

void SoXtConstrainedViewer::saveHomePosition ( void )

virtual

Store the current camera settings for later retrieval with resetToHomePosition().

See also: resetToHomePosition()

Reimplemented from SoXtViewer.

◆ resetToHomePosition()

void SoXtConstrainedViewer::resetToHomePosition ( void )

virtual

Restore the saved camera settings.

See also: saveHomePosition()

Reimplemented from SoXtViewer.

Reimplemented in SoXtFlyViewer.

◆ tiltCamera()

void SoXtConstrainedViewer::tiltCamera ( float delta )

protectedvirtual

This method tilts the camera delta degrees closer to the up direction.

◆ bottomWheelMotion()

void SoXtConstrainedViewer::bottomWheelMotion ( float value )

protectedvirtual

Called repeatedly as the user drags the thumbwheel in the bottom frame. Override this method in subclassed viewers to provide your own functionality on the thumbwheel.

See also: bottomWheelStart(), bottomWheelFinish(); leftWheelStart(), rightWheelStart()

Reimplemented from SoXtFullViewer.

◆ leftWheelMotion()

void SoXtConstrainedViewer::leftWheelMotion ( float value )

protectedvirtual

Called repeatedly as the user drags the thumbwheel in the left frame. Override this method in subclassed viewers to provide your own functionality on the thumbwheel.

See also: leftWheelStart(), leftWheelFinish(); bottomWheelStart(), rightWheelStart()

Reimplemented from SoXtFullViewer.

◆ changeCameraValues()

void SoXtConstrainedViewer::changeCameraValues ( SoCamera * camera )

protectedvirtual

Copies the settings of camera into our current camera. Cameras must be of the same class type.

Reimplemented from SoXtViewer.

◆ findUpDirection()

void SoXtConstrainedViewer::findUpDirection ( SbVec2s mouselocation )

protected

Executes a raypick at the given mousepointer location and sets the viewer's camera up-vector direction to the normal vector of the picked geometry.

◆ checkForCameraUpConstrain()

void SoXtConstrainedViewer::checkForCameraUpConstrain ( void )

protected

If necessary, "tilts" the camera sideways so the up-direction is heeded.

The documentation for this class was generated from the following files:

SoXtConstrainedViewer.h
SoXtConstrainedViewer.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SoXtConstrainedViewer()

◆ ~SoXtConstrainedViewer()

Member Function Documentation

◆ setUpDirection()

◆ getUpDirection()

◆ setCamera()

◆ saveHomePosition()

◆ resetToHomePosition()

◆ tiltCamera()

◆ bottomWheelMotion()

◆ leftWheelMotion()

◆ changeCameraValues()

◆ findUpDirection()

◆ checkForCameraUpConstrain()
