The dimeBase class is the superclass for most classes in Dime. More...

#include <dime/Base.h>

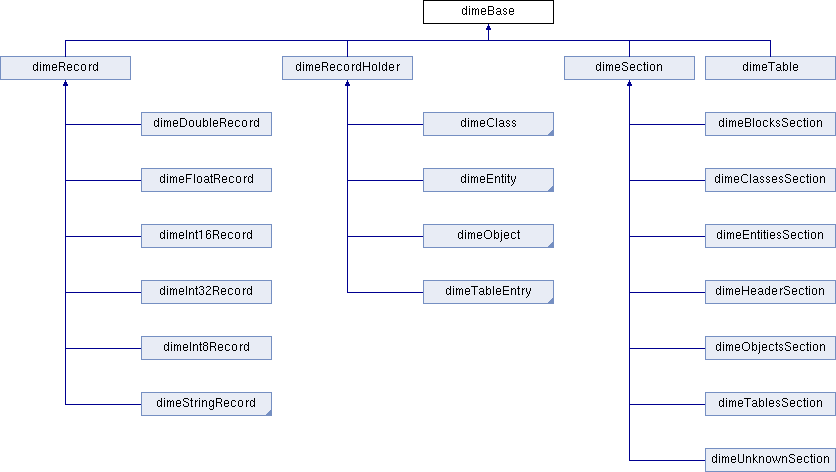

Inheritance diagram for dimeBase:

Public Types
enum	{ dimeBaseType = 1, dimeRecordType, dimeStringRecordType, dimeFloatRecordType, dimeDoubleRecordType, dimeInt8RecordType, dimeInt16RecordType, dimeInt32RecordType, dimeHexRecordType, dimeRecordHolderType, dimeClassType, dimeUnknownClassType, dimeObjectType, dimeUnknownObjectType, dimeEntityType, dimeUnknownEntityType, dimePolylineType, dimeVertexType, dimeFaceEntityType, dimeExtrusionEntityType, dime3DFaceType, dimeSolidType, dimeTraceType, dimeLineType, dimeTextType, dimePointType, dimeBlockType, dimeInsertType, dimeCircleType, dimeArcType, dimeLWPolylineType, dimeEllipseType, dimeSplineType, dimeSectionType, dimeUnknownSectionType, dimeEntitiesSectionType, dimeBlocksSectionType, dimeTablesSectionType, dimeHeaderSectionType, dimeClassesSectionType, dimeObjectsSectionType, dimeTableType, dimeTableEntryType, dimeUnknownTableType, dimeUCSTableType, dimeLayerTableType, dimeLastTypeTag }

Public Member Functions
	dimeBase (void)

virtual	~dimeBase ()

virtual int	typeId () const =0

virtual bool	isOfType (const int thetypeid) const

void *	operator new (size_t size, dimeMemHandler *memhandler=NULL, const int alignment=4)

void	operator delete (void *ptr)

Detailed Description

The dimeBase class is the superclass for most classes in Dime.

dimeBase implements the new operator to enable use of the special-purpose memory manager class, dimeMemHandler. It also implements a simple run-time type checking system.

Constructor & Destructor Documentation

◆ dimeBase()

dimeBase::dimeBase ( void )

Constructor.

◆ ~dimeBase()

dimeBase::~dimeBase ( )

virtual

virtual destructor.

Member Function Documentation

◆ typeId()

int dimeBase::typeId ( ) const

pure virtual

Must be implemented by all subclasses, and should return an unique id for that class.

Implemented in dimePolyline, dimeSpline, dimeVertex, dimeBlock, dime3DFace, dimeEllipse, dimeText, dimeFaceEntity, dimeArc, dimeInsert, dimeCircle, dimeHeaderSection, dimeRecord, dimeObject, dimeLayerTable, dimeStringRecord, dimeUCSTable, dimeLine, dimePoint, dimeSection, dimeUnknownSection, dimeTable, dimeTableEntry, dimeExtrusionEntity, dimeLWPolyline, dimeClassesSection, dimeEntitiesSection, dimeObjectsSection, dimeDoubleRecord, dimeFloatRecord, dimeInt16Record, dimeInt32Record, dimeInt8Record, dimeBlocksSection, dimeTablesSection, dimeUnknownClass, dimeSolid, dimeTrace, dimeUnknownObject, dimeUnknownEntity, dimeUnknownTable, and dimeHexRecord.

◆ isOfType()

bool dimeBase::isOfType ( const int thetypeid ) const

virtual

Returns true if the object is of type typeid or is inherited from it. Function in base class checks whether thetypeid equals the virtual dimeBase::typeId() value or equals dimeBaseType. Must be implemented by all subclasses that are superclasses of other classes, and should check if thetypeid equals its typeId, and then call its parent's isOfType function. Leaf-classes do not have to implement this method.

Reimplemented in dimeEntity, dimeFaceEntity, dimeRecordHolder, dimeClass, dimeObject, dimeSection, dimeTableEntry, and dimeExtrusionEntity.

The documentation for this class was generated from the following files:

Base.h
Base.cpp
