The dimeFaceEntity class is an abstract class that handles one-face entity classes. More...

#include <dime/entities/FaceEntity.h>

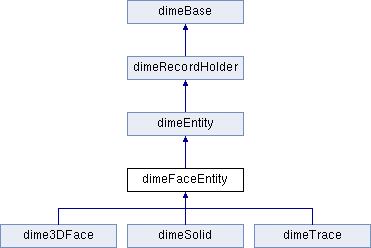

Inheritance diagram for dimeFaceEntity:

Public Member Functions
bool	isQuad () const

virtual bool	getRecord (const int groupcode, dimeParam &param, const int index=0) const

void	setVertex (const int idx, const dimeVec3f &v)

void	setTriangle (const dimeVec3f &v0, const dimeVec3f &v1, const dimeVec3f &v2)

void	setQuad (const dimeVec3f &v0, const dimeVec3f &v1, const dimeVec3f &v2, const dimeVec3f &v3)

const dimeVec3f &	getVertex (const int idx) const

void	getVertices (dimeVec3f &v0, dimeVec3f &v1, dimeVec3f &v2, dimeVec3f &v3) const

virtual dxfdouble	getThickness () const

virtual void	getExtrusionDir (dimeVec3f &ed) const

GeometryType	extractGeometry (dimeArray< dimeVec3f > &verts, dimeArray< int > &indices, dimeVec3f &extrusionDir, dxfdouble &thickness)

virtual int	typeId () const

virtual bool	isOfType (const int thetypeid) const

virtual int	countRecords () const

Public Member Functions inherited from dimeEntity
	dimeEntity ()

virtual	~dimeEntity ()

int16	getEntityFlags () const

void	setEntityFlags (const int16 flags)

int16	getColorNumber () const

void	setColorNumber (const int16 c)

virtual void	setLayer (const dimeLayer *const layer)

virtual const char *	getEntityName () const =0

const dimeLayer *	getLayer () const

const char *	getLayerName () const

virtual dimeEntity *	copy (dimeModel *const model) const =0

virtual bool	read (dimeInput *const in)

virtual bool	write (dimeOutput *const out)

virtual void	print () const

bool	isDeleted () const

void	setDeleted (const bool onOff=true)

bool	isTagged () const

void	setTagged (const bool onOff=true)

Public Member Functions inherited from dimeRecordHolder
	dimeRecordHolder (const int separator)

virtual	~dimeRecordHolder ()

void	setRecord (const int groupcode, const dimeParam &value, dimeMemHandler *const memhandler=NULL)

void	setRecords (const int const groupcodes, const dimeParam const params, const int numrecords, dimeMemHandler *const memhandler=NULL)

void	setIndexedRecord (const int groupcode, const dimeParam &value, const int index, dimeMemHandler *const memhandler=NULL)

dimeRecord *	findRecord (const int groupcode, const int index=0)

int	getNumRecordsInRecordHolder (void) const

dimeRecord *	getRecordInRecordHolder (const int idx) const

Public Member Functions inherited from dimeBase
	dimeBase (void)

virtual	~dimeBase ()

void *	operator new (size_t size, dimeMemHandler *memhandler=NULL, const int alignment=4)

void	operator delete (void *ptr)

Protected Member Functions
virtual bool	swapQuadCoords () const

virtual bool	handleRecord (const int groupcode, const dimeParam &param, dimeMemHandler *const memhandler)

void	copyCoords (const dimeFaceEntity *const entity)

bool	writeCoords (dimeOutput *const file)

Protected Member Functions inherited from dimeEntity
bool	preWrite (dimeOutput *const file)

virtual bool	traverse (const dimeState const state, dimeCallback callback, void userdata)

virtual void	fixReferences (dimeModel *const model)

virtual bool	shouldWriteRecord (const int groupcode) const

bool	copyRecords (dimeEntity const entity, dimeModel const model) const

Protected Member Functions inherited from dimeRecordHolder
bool	copyRecords (dimeRecordHolder const rh, dimeMemHandler const memhandler) const

Protected Attributes
dimeVec3f	coords [4]

Protected Attributes inherited from dimeRecordHolder
dimeRecord **	records

int	numRecords

Additional Inherited Members
Public Types inherited from dimeEntity
enum	GeometryType { NONE, POLYGONS, LINES, POINTS }

Public Types inherited from dimeBase
enum	{ dimeBaseType = 1, dimeRecordType, dimeStringRecordType, dimeFloatRecordType, dimeDoubleRecordType, dimeInt8RecordType, dimeInt16RecordType, dimeInt32RecordType, dimeHexRecordType, dimeRecordHolderType, dimeClassType, dimeUnknownClassType, dimeObjectType, dimeUnknownObjectType, dimeEntityType, dimeUnknownEntityType, dimePolylineType, dimeVertexType, dimeFaceEntityType, dimeExtrusionEntityType, dime3DFaceType, dimeSolidType, dimeTraceType, dimeLineType, dimeTextType, dimePointType, dimeBlockType, dimeInsertType, dimeCircleType, dimeArcType, dimeLWPolylineType, dimeEllipseType, dimeSplineType, dimeSectionType, dimeUnknownSectionType, dimeEntitiesSectionType, dimeBlocksSectionType, dimeTablesSectionType, dimeHeaderSectionType, dimeClassesSectionType, dimeObjectsSectionType, dimeTableType, dimeTableEntryType, dimeUnknownTableType, dimeUCSTableType, dimeLayerTableType, dimeLastTypeTag }

Static Public Member Functions inherited from dimeEntity
static dimeEntity *	createEntity (const char const name, dimeMemHandler const memhandler=NULL)

static bool	readEntities (dimeInput const file, dimeArray< dimeEntity > &array, const char *const stopat)

static bool	copyEntityArray (const dimeEntity const const array, const int nument, dimeModel const model, dimeArray< dimeEntity > &destarray)

static dimeEntity **	copyEntityArray (const dimeEntity const const array, int &nument, dimeModel *const model)

static void	arbitraryAxis (const dimeVec3f &givenaxis, dimeVec3f &newaxis)

static void	generateUCS (const dimeVec3f &givenaxis, dimeMatrix &m)

Detailed Description

The dimeFaceEntity class is an abstract class that handles one-face entity classes.

Member Function Documentation

◆ getRecord()

bool dimeFaceEntity::getRecord	(	const int	groupcode,
		dimeParam &	param,
		const int	index = `0`
	)		const

virtual

Will return the value of the record with group code groupcode. false is returned if the record could not be found. Subclasses should overload this method if one or several records are stored in the class. If the groupcode queried is not stored internally, the subclass should call its parent's method.

Reimplemented from dimeEntity.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ setTriangle()

void dimeFaceEntity::setTriangle	(	const dimeVec3f &	v0,
		const dimeVec3f &	v1,
		const dimeVec3f &	v2
	)

Sets vertices to create a triangle.

◆ setQuad()

void dimeFaceEntity::setQuad	(	const dimeVec3f &	v0,
		const dimeVec3f &	v1,
		const dimeVec3f &	v2,
		const dimeVec3f &	v3
	)

Sets vertices to create a quad.

◆ getVertex()

const dimeVec3f & dimeFaceEntity::getVertex ( const int idx ) const

inline

Returns vertex nr idx.

◆ getVertices()

void dimeFaceEntity::getVertices	(	dimeVec3f &	v0,
		dimeVec3f &	v1,
		dimeVec3f &	v2,
		dimeVec3f &	v3
	)		const

Returns all four vertices.

◆ getThickness()

dxfdouble dimeFaceEntity::getThickness ( ) const

virtual

Default method return 0.0. Should be overloaded if this is not correct for all cases.

Reimplemented in dimeSolid, and dimeTrace.

◆ getExtrusionDir()

void dimeFaceEntity::getExtrusionDir ( dimeVec3f & ed ) const

virtual

Default method returns (0,0,1). Should be overloaded if this is not correct for all cases.

Reimplemented in dimeSolid, and dimeTrace.

◆ extractGeometry()

dimeEntity::GeometryType dimeFaceEntity::extractGeometry	(	dimeArray< dimeVec3f > &	verts,
		dimeArray< int > &	indices,
		dimeVec3f &	extrusionDir,
		dxfdouble &	thickness
	)

virtual

A special convenience function, included for your pleasure. Enables the user to ignore the type of entity, and just call this method when extracting geometry. Very useful for 3D viewers that need DXF support. Check out the dxf2vrml directory for an example on how to convert a DXF file to VRML.

Should be overloaded by all subclasses that have geometry, default function returns no geometry. Don't forget to transform vertices by the current transformation matrix if used in a callback from dimeEntity::traverse().

If there are coordinates, but no indices, this means running indices for the entire vertex array.

Different faces and/or line segments are separated by a -1 in the indices array, just as in VRML files.

If thickness != 0.0, the data should, before transformation, be extruded by that length along the extrusion direction. Hence, a point becomes a line, a line becomes a quad, and a polygon becomes an object with a volume.

If thickness == 0.0 and extrusionDir != (0,0,1) all the vertices should be transformed by a matrix that can be created using dimeEntity::generateUCS(). If you are using dimeModel::traverseEntities() to extract the geometry, simply right-multiply the UCS matrix with the matrix found in dimeState to get the correct transformation.

Reimplemented from dimeEntity.

◆ typeId()

int dimeFaceEntity::typeId ( ) const

virtual

Must be implemented by all subclasses, and should return an unique id for that class.

Implements dimeBase.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ isOfType()

bool dimeFaceEntity::isOfType ( const int thetypeid ) const

virtual

Returns true if the object is of type typeid or is inherited from it. Function in base class checks whether thetypeid equals the virtual dimeBase::typeId() value or equals dimeBaseType. Must be implemented by all subclasses that are superclasses of other classes, and should check if thetypeid equals its typeId, and then call its parent's isOfType function. Leaf-classes do not have to implement this method.

Reimplemented from dimeEntity.

◆ countRecords()

int dimeFaceEntity::countRecords ( ) const

virtual

Returns the number of records in the record holder. Should be overloaded by subclasses which should count their records, and then call the parent's method. This method is used to precalculate the number of records to be written. Very useful when progress information is needed during write().

Reimplemented from dimeEntity.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ swapQuadCoords()

bool dimeFaceEntity::swapQuadCoords ( ) const

protectedvirtual

Default function returns false. If true is returned, the last two vertices will be swapped before returning geometry in extractGeometry().

Reimplemented in dimeSolid, and dimeTrace.

◆ handleRecord()

bool dimeFaceEntity::handleRecord	(	const int	groupcode,
		const dimeParam &	param,
		dimeMemHandler *const	memhandler
	)

protectedvirtual

Must be overloaded by entities that directly supports a record type. During dimeRecordHolder::read(), dimeRecordHolder::setRecord and dimeRecordHolder::setRecords, this function is called for every record found, and it is up to the subclass if the record should be stored internally, or if a generic record should be created and stored in this superclass. A subclass should return true when it will handle the record, false otherwise. Default function does nothing, and returns false.

For entities, records with group codes 8 (layer name) and 62 (color number) are automatically handled by the dimeEntity class.

See also: dimeRecordHolder::read(); dimeRecordHolder::setRecord()

Reimplemented from dimeEntity.

Reimplemented in dime3DFace, dimeSolid, and dimeTrace.

◆ copyCoords()

void dimeFaceEntity::copyCoords ( const dimeFaceEntity *const entity )

protected

Copies the coordinates from entity.

◆ writeCoords()

bool dimeFaceEntity::writeCoords ( dimeOutput *const file )

protected

Will write the coordinate data to out. Should be called by subclasses at some time during write.

The documentation for this class was generated from the following files:

FaceEntity.h
FaceEntity.cpp
